5 dic 2012

hydro-fold




Hydro-Fold is a fascinating technique of folding that automatically begins to assume a three dimensional shape upon being printed from a normal ink jet machine. Invited by its Director Marva Griffin to the 15th anniversary of theSalone Satellite, on the theme “Design Technology”, the ECAL (University of Art and Design Lausanne) presents an installation by Christophe Guberan, a third-year Bachelor student of Industrial Design. “The idea is to give shape to paper through the simple use of water, adapting an existing printer to control the phenomenon.



Milan 2012: this inkjet printer has been adapted by Ecole Cantonale d’art de Lausanne (ECAL) student Christophe Guberan to print patterns that contort pieces of paper into specific 3D forms.


Hydro-Fold by Christophe Guberan


The machine prints a mixture of water and ink that causes the paper to fold automatically along wet lines and humid areas.


Hydro-Fold by Christophe Guberan


It’s hooked up to a computer that can be used to generate patterns for different fold configurations.


Hydro-Fold by Christophe Guberan

Hydro-Fold by Christophe Guberan

Hydro-Fold by Christophe Guberan
Here are some more details from ECAL:

Hydro-Fold by ECAL/Christophe Guberan


Hydro-Fold by Christophe Guberan


Under the given topic «Design-Technology» we decided to present a very innovative yet extremely straight-forward project: Hydro-Fold.


Hydro-Fold by Christophe Guberan


Christophe Guberan, 3rd year Product Design student at the ECAL conceived and developed the Hydro-Fold project. It is a project combining modern technology (ink-jet printer) and a very well known and accessible material (paper)

.
Hydro-Fold by Christophe Guberan


Hydro-Fold is a project that aims to explore the properties of paper or how a liquid may bend its structure.


Hydro-Fold by Christophe Guberan


The project consists on bringing modifications on a simple contemporary desktop ink-jet printer by replacing the regular ink contained in the cartridge by a very specific mixture of ink and water.


Hydro-Fold by Christophe Guberan


Different patterns, grids and shapes can be printed on paper using this specific liquid. While drying, the paper contorts, folds and retracts around the printed and humid areas, transforming it self from a 2-dimensional paper sheet to a 3-dimensional structure where lines become edges and surfaces become volumes.]

Hydro-Fold by Christophe Guberan

Hydro-Fold by Christophe Guberan

Hydro-Fold by Christophe Guberan

Material: paper, ink + water
Process: customised water printing machine

Hydro-Fold by Christophe Guberan


4 dic 2012

water technology


microorganism

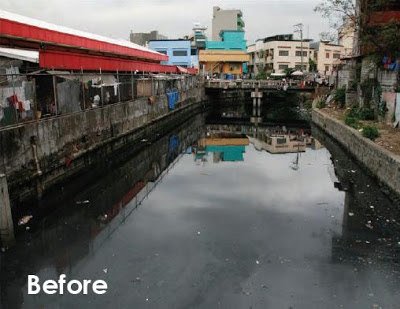

RIVER RESTORATION

veden_taika








RESULTS:

Improves dissolved oxygen

Low energy, chemical free treatment

Odour filtration

Aesthetic cleantech

Reduced algae

Advanced tratment standards for BOD, COD, NH3.



Natural Treatment

The Biomatrix system is an engineered floating ecology designed to optimize powerful ecological treatment processes within an attractive feature of the aquatic landscape.  The Biomatrix combines the latest developments in ecological engineering with new biofilm research and traditional wastewater treatment processes.  Whole system engineered ecologies provide an energy efficient, low life cycle cost treatment solution.


The Form

img_6961

The systems are designed in sections, which can be configured in attractive natural shapes.  The Biomatrix unit can be designed to blend with the existing waterscape in strategic locations where performance can be optimized.  The system can be configured along the edge of the waterway, or centrally as islands or archipelagos.

Floating Structures

The Biomatrix system can incorporate variable levels of buoyancy from 10kg/m2 to over 100 kg/m2. The use of different levels of buoyancy allow areas of walkways, floating bridges, pavilions, boat docking sites or public artworks to be integrated with the treatment system.

Biomatrix systems are ideally suited for contaminated canals, rivers, lakes and reservoirs; as well as providing effective treatment of high strength waste in purpose built lagoons and treatment cells.

The Biomatrix provides the foundation and the substrate to support a diversity of life forms from many different phylogenetic kingdoms. These include the bacteria, fungi, algae, protozoa, annelids, mollusks, insects, vertebrates (including frogs and turtles), and higher plants. This multitude of life forms, in concert, have the capability to treat wastes, pathogens and toxins. The basic technological and scientific principles governing the design of natural treatment systems have been well articulated and subjected to scientific review.

salo-biomatrix
TREATMENT PROCESSES WITHIN BIOMATRIX SYSTEMS CAN EFFECTIVELY:
  • Improve water clarity
  • Remove and stabilize nutrients
  • Reduce algae
  • Breakdown industrial chemicals
  • Remove Biological and Chemical Oxygen Demand
  • Filter out Suspended Solids and particulate


 WASTEWATER TREATMENT

six1


ECOLOGICAL TOOLBOX

ecological-toolbox
